Cardboard Compactor

Product Description

If you want a Carton Baler / Carton Compactor, here we recommend 2 types of baler machine: horizontal carton baler and vertical carton compactor.

horizontal carton baler and vertical carton compactor

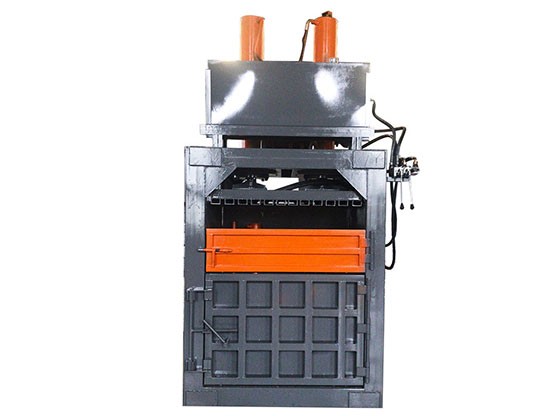

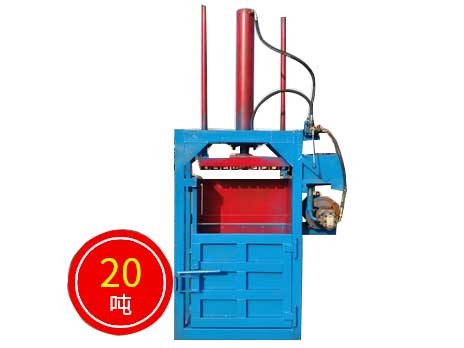

Vertical carton compactor for sale is mainly used for packaging waste cartons, cotton yarn, plastics, clothes, etc. It is designed as a vertical structure, hydraulic drive, electrical control and manual binding.

It is used to compress scrap paper (carton, OCC, newspaper ), scrap plastic ( PET bottle, turnover box, plastic film, etc ), straw and hay, etc loose material. It is suitable for the recycling industry, agriculture industry, paper industry, etc.

cardboard compactor for sale .

Vertical hydraulic cardboard compactors for sale can compress and pack all kinds of wate paper, waste plastic film, waste fabric, garment, quilt, pillowcase, pillow, straw, cotton, straw, grain, etc.

Reduced, easy to package, can improve labor efficiency and reduce labor cost.

cardboard box baler

We can customize waste baler machine according to your materials and needs, if you want specific prices and baler parameters, please feel free to contact us.

Usually the pressure of this series is 10 tons KN to 60 tons KN, and the efficiency is 4 to 6 pieces per hour. Depending on the material, the weight of each piece is 30 Kg to 300 Kg.

carton press machine, cardboard compactor baler

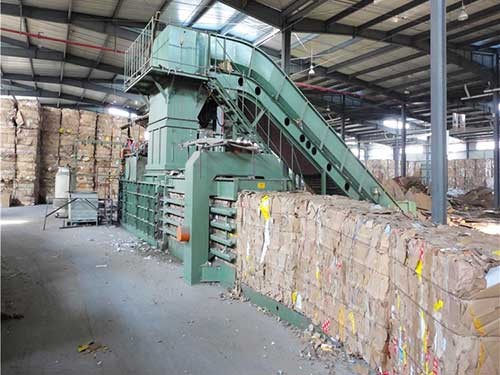

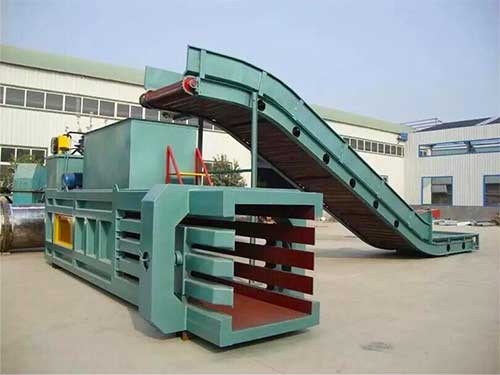

Horizontal cardboard compactor or carton press baler machine:

Horizontal cardboard compactor or carton press baler machine

Main features of horizontal cardboard compactor:

1. All models are hydraulically driven and can be operated manually or automatically by PLC;

2. The output form of flip bag, push bag (side push and push forward) or artificial bag (packaging) and other different ways;

3. Installed without foot screws in place without power, the use of diesel engine as power;

4. Extrusion pressure from 63 tons to 400 tons, there are ten grades for users to choose, production efficiency from 4 tons / class to 40 tons / class.

5. Compression chamber size and package size can be customized according to customer requirements.

6. Push cylinder and pushing head is connected with a spherical structure, good reliability, long service life of the seal.

7. Feeding port with a distributed shear knife, high shear efficiency.

8.Low noise hydraulic circuit design, high efficiency and low malfunction.

9. Easy to install without foundation.

10. Horizontal structure, can be fed with conveyor or manual feeding.

11. Button operation, PLC control, safe and reliable.

cardboard box baler, cardboard compactor baler

cardboard compactors for sale, cardboard box compactor

Parameter

Parameter of Vertical Waste Baling Machine

Model	Hydraulic Oil Cylinder	Motor Powder	Bale Size(cm)	Machine Size(cm)	Weigh(kg)
10 ton single	115	7.5kw	804080	15070270	500
20 ton single	140	7.5kw	804080	15070280	550
30 ton single	160	11kw	804080	15070280	600
30 ton double	115	11kw	1006080	17585280	700
40 ton single	180	11wk	1006080	17585280	750
40 ton double	140	11kw	1006080	17585280	800
60 ton double	160	15kw	12080100	170100320	1300
80 ton double	180	18.5kw	12080100	175110330	1450
100 ton double	180	22kw	12080100	175110330	1600

Parameter of Horizontal Waste Baler Mahine

Type	DH-80	DH-100	DH-120	DH-160	DH-180	DH-200
Pressure of hydraulic system	800kn	100kn	1200kn	1600kn	1800kn	2000kn
Power	22kw	22kw	22kw+15kw	22kw+15kw	22kw+15kw	22kw+22kw
Voltage standard	3ph380v or customized
System pressure	28mpa
Hydraulic oil Brand	46# Harding-wearing Hydraulic Oil Brand
Bale size(mm)	800*900	900*1000	900*1100	1100*1200	1100*1300	1100*1400
Capacity	8 bale per hour
Control System	PLC, semi-automatic, full-automatic

If you have any suggestions or opinions about our products,please leave a message,and we will immediately answer your questions. Thanks for your support.
